Powdery stirring pump, powders stirrer, consecutive stirring (dispersion) planes

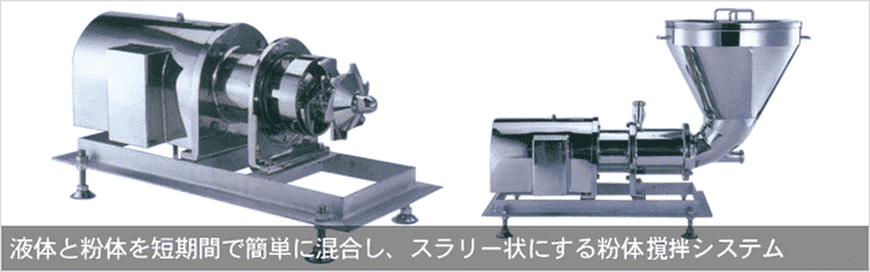

Powders stirring system to easily mix a liquid and powders in a short term, and to grind into a slurry form.
Powders stirring system to easily mix a liquid and powders in a short term, and to grind into a slurry form.
・Because there is a pump function, I can transfer it while making stirring (dispersion).
・I can easily perform maintenance, check and work of the resolution washing.
・By the impeller of the unique shape, high stirring (dispersion) measures are possible.
Model | Ability for powdered skim milk stirring (kg/h) | Water supply at the time of the stirring (legislation meter /h) | Liquid viscosity (MPa, s) | Ability for discharge in Shimizu | |
Discharge (legislation meter /h) | Discharge pressure (MPaG) | ||||
K-5 | 800 | 3-3.6 | ... 500 | 15 | 0.22 |
K-10 | 2000 | 5-6 | ... 1000 | 30 | 0.31 |
5A | 800 | 3-3.6 | ... 800 | 15 | 0.12 |
10A | 2000 | 3-6 | ... 5000 | 30 | 0.15 |
15A | 6000 | 8-10 | ... 6000 | 50 | 0.20 |
20A | 8000 | 10-15 | ... 7000 | 80 | 0.25 |
