Aim

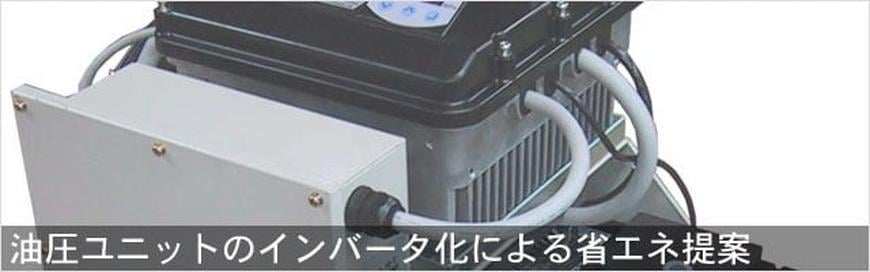

I realize 50% energy saving by inverter-style oil pressure unit control.
I suppress yuonjonobori and suppress the deterioration of the seal of the use apparatus.
Because the noise is suppressed, I contribute to improvement of the labor circumstances.
Characteristic
・Feasible in energy saving 50% or more (hooshiji)

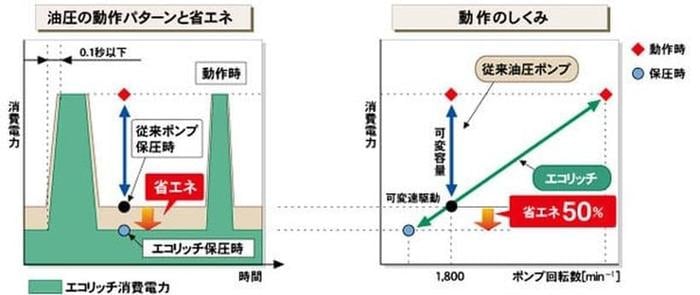

I realize large energy saving by lowering motor number of revolutions in hooshijotai
I adopt IPM motor, the control unit of the high efficiency and a small fixed capacity pump
・High responsiveness
Responsiveness (less than hooshiji ⇔ biggest flow quantity driving 0.1sec) with more than of conventional variableness capacity pump and same class

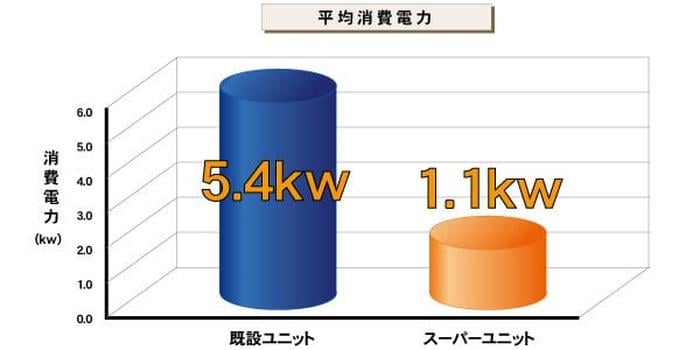

Energy saving effect comparison (our estimate example)
Specifications
| Model
| Motor capacity
| Use pressure
| Pump capacity
|
Act
Oil pressure unit | V50A2RX-2
| 22kW X 4P
| 13.2Mpa
| 92 (L/min)
|
Energy saving
Oil pressure unit | SUT00D8021-10-F
| 7kW
| 13.2Mpa
| 83 (L/min)
|
Reduction of energy saving effect ... about 80%

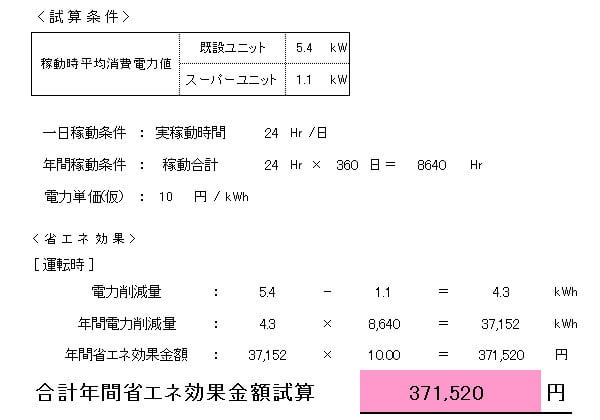

The effect that is anticipated
When replace the electricity oil pressure unit which estimated mentioned above with Daikin "inverter energy saving unit", about 80% of electricity reduction effects
But, I can anticipate it.
But, I can anticipate it.
・I can anticipate the reduction of the CO2 discharge with electricity costs reduction.
・Thermogenesis is extremely the small to lower below motor number of revolutions 1/10 by inverter control at oil pressure maintenance (wait) time, and to drive
I can keep kunari tank yuon average, room temperature less than +15 degree.
I can keep kunari tank yuon average, room temperature less than +15 degree.
・As a rise of yuon is suppressed, deterioration speed of the hydraulic oil becomes slow, and exchange frequency of the hydraulic oil decreases. It is gas of valves again
As I am equally effective for the deterioration such as the seal materials of the blanket side and the O ring, as a result, I can prevent an oil leak
masu.
As I am equally effective for the deterioration such as the seal materials of the blanket side and the O ring, as a result, I can prevent an oil leak
masu.
・The low noise (less than 72d/b) that is larger than the noise of the conventional hydraulic pump is realized.
・As a case to be equipped with newly after the substitution removes the current motor pump on the tank in operation and an independent oil pressure unit newly
There is a case to add.
There is a case to add.
The publication data are the guess levels based on the conventional results data.
