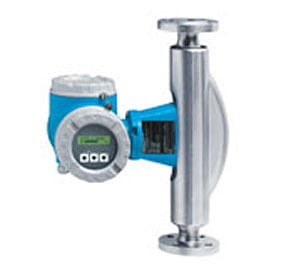

Promass 80F
Stiffness cage mass flowmeter
General-purpose mass flowmeter for a liquid and the gas measurement
General-purpose mass flowmeter for a liquid and the gas measurement
Characteristic
The professional trout is available for the simultaneous measurement of the plural processes level (mass/volume/temperature) in the measurement in various use environment.
The converter which was unified as professional line series
・A modular system raising efficiency and operation concept
・A diagnosis function to raise process quality and data backup
The professional trout sensor which was demonstrated by application more than 100,000
・It is compact by a multi-function
・By a balanced dual (two) tube measurement system,
The high outside-resistant vibratility
The high outside-resistant vibratility
・The solid design which is not influenced by power from the outside such as the plumbing
・Because it is not necessary to make the upper classes side/downstream side direct pipe head, I install it simply
Application
The principle of measurement of the stiffness cage is not affected by the measurement fluids properties such as viscosity or the density.
Oil and a lubricant, fuel, liquefaction gas, a solvent, food additives, liquids such as the compressed gas (CNG) and high precision measurement of gas
Fluid temperature: To +350 degree Celsius
Process pressure: To 10MPa
Range of measurement: To 2,200t/h
Process pressure: To 10MPa
Range of measurement: To 2,200t/h
Explosion-proof authorization:
TIIS,ATEX,FM,CSA
Food industry/hygiene sector authorization:
3A,FDA
The interface with the process control system:
HART,PROFIBUSPA
Others:
Protection container (to 4MPa), European pressure component order, SIL-2
※The product specification mentioned above is data as of July, 2008. Please note that specifications, the production situation of the product may be changed without a notice.
