Not only I reduce an electricity expense by improving illumination, and reducing the use number, but also contribute to improvement of the work environment by illumination up by changing a mercury lamp, plateaus.

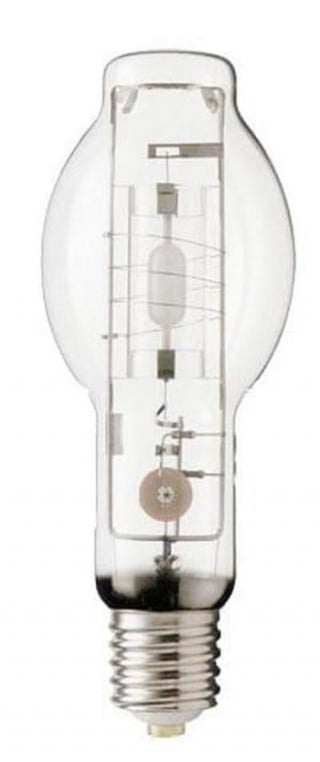

FEC ceralux ace (product made by IWASAKI ELECTRIC Co., Ltd.)
I come by energy saving with a bright lamp.
I realize energy saving in high efficiency 120lm/W (transparence form)
It is the industry highest standard with the starter incorporation form high color rendering HID lamp ※I realize lamp efficiency 120lm/W (360W transparence form) of this. I largely improve lower efficiency of the conventional high color rendering lamp and balance high color rendering with energy saving.
※In the form ceramic metal halide lamp embedding a starter as of October 1, 2006
It is the industry highest standard with the starter incorporation form high color rendering HID lamp ※I realize lamp efficiency 120lm/W (360W transparence form) of this. I largely improve lower efficiency of the conventional high color rendering lamp and balance high color rendering with energy saving.
※In the form ceramic metal halide lamp embedding a starter as of October 1, 2006
The stabilizer of the mercury lamp is just usable.
It turns on with a general form mercury lamp stabilizer
It incorporates a starter (FEC starter) in a lamp. 180W, 220W, 270W, 360W can turn on 150W with the cheap exclusive stabilizer by the design like the mercury lamp stabilizer with a general form mercury lamp stabilizer.
It incorporates a starter (FEC starter) in a lamp. 180W, 220W, 270W, 360W can turn on 150W with the cheap exclusive stabilizer by the design like the mercury lamp stabilizer with a general form mercury lamp stabilizer.
I can use an insect as the lamp which is hard to gather.
I cut the ultraviolet rays which an insect likes
I gave UV cut coating and largely reduced the inducement of the insect. In comparison with a mercurial lamp, about 40% can control yumushisei.
A UV cut film cutting light (380nm or less) of the ultraviolet area about 90% is coated by a pipe out of the lamp. I can restrain coming flying without largely reducing the inducement of the insect in comparison with mercurial lamps because I cut light of the ultraviolet area which the insect likes, and getting rid of the insects like surprise insect killing device or pesticide dispersion.
I gave UV cut coating and largely reduced the inducement of the insect. In comparison with a mercurial lamp, about 40% can control yumushisei.
A UV cut film cutting light (380nm or less) of the ultraviolet area about 90% is coated by a pipe out of the lamp. I can restrain coming flying without largely reducing the inducement of the insect in comparison with mercurial lamps because I cut light of the ultraviolet area which the insect likes, and getting rid of the insects like surprise insect killing device or pesticide dispersion.
I can let a stabilizer last a long time as much as possible.
It incorporates us's original technical "FEC starter"
The FEC starter lets a lamp turn on surely with the low pulse voltage and suppresses the influence on stabilizer at the time of the lamp non-lighting of the last years of life, and it is safe, and there is a big advantage.
By the rise in lamp voltage die out
Because the pulse voltage is low, there is little load to a stabilizer. (kind to a stabilizer)
Light-emitting tube leak, outside ball leak
By FEC jiko*dan, the outbreak of the pulse stops. (the influence on stabilizer disappears)
The FEC starter lets a lamp turn on surely with the low pulse voltage and suppresses the influence on stabilizer at the time of the lamp non-lighting of the last years of life, and it is safe, and there is a big advantage.
By the rise in lamp voltage die out
Because the pulse voltage is low, there is little load to a stabilizer. (kind to a stabilizer)
Light-emitting tube leak, outside ball leak
By FEC jiko*dan, the outbreak of the pulse stops. (the influence on stabilizer disappears)
I can use it for the appliance undersurface without a cover.
It is available by a light-emitting tube protection sleeve.
The light-emitting tube explosion of the emergency of the last years of life is protected by a light-emitting tube protection sleeve. I suppress the influence on ball out of the lamp and enable the use to the undersurface opening appliance.
※Only as for the perpendicular lighting form
The light-emitting tube explosion of the emergency of the last years of life is protected by a light-emitting tube protection sleeve. I suppress the influence on ball out of the lamp and enable the use to the undersurface opening appliance.
※Only as for the perpendicular lighting form
Other characteristics
I continue brightness at a high maintenance rate
As for the maintenance rate of the brightness to decrease with lighting time (bundle of rays maintenance rate), as for 150W, 220W, 270W, 80%, 180W, 360W are 75%. Conventionally, in addition to lamp efficiency being high, I maintain brightness for a long time.
I realize maintenance-saving with longer life of 15000 hours
With the longer life of rating life 15,000 hours, I can reduce trouble of the lamp maintenance. (as for 150W 12,000 hours)
High color rendering near natural light of Ra80 - 93
I realize the high color rendering more than the general form metal halide lamp. I can create space full of life near natural light.
I reduce light-colored unevenness and color variation turning on
By the adoption of the ceramic light-emitting tube, I maintain a stable light color in comparison with the general form metal halide lamps.
Sentence (+ image)
※The product specification mentioned above is data as of July, 2008. Please note that specifications, the production situation of the product may be changed without a notice.
