Flange application device of Tokki, rail sweeper
・Quantity of application of the lubricant attaches to the flange aspect of the wheel and the rail side constantly, and the coherence is very excellent.
・Extra oil bleeds for one of oil in fumimen of the rail, and we do not have to worry about the slip meandering of the wheel.
・The contact surface forms a film peculiar to a pole pressure lubricant without causing running out of oil slick.
・Most of the adhesion of the dust is not seen by impression skin.
・I show a rust prevention power and am not oxidized at all.
Features of the application device
●I can easily attach an application device just to install a mounting bracket in a club or the garters.
●It is clear at a glance and, seeing from the outside, knows an application state.
●The exchange of the lubricant is easily possible only by the adjustment of the butterfly nut.
●They are relieved after the application on around 3rd if they set a lubricant if the rudder reaspect of the flange is eyes digit out of one of a file, and higher than are usually superior in seal characteristics by materials constitution having once for heat-resistant security and long term for four months.

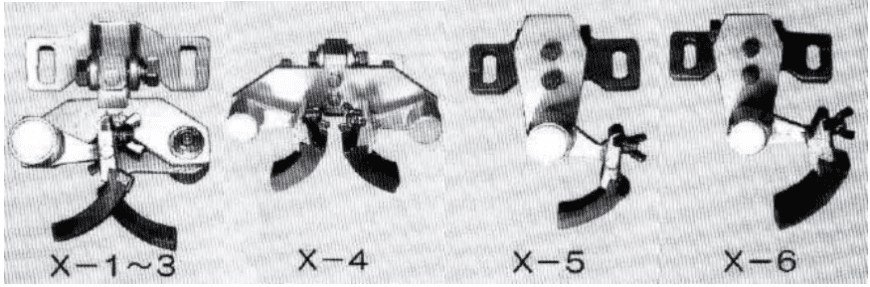

Kind of the application device
Model of the application device
| Covering short width (W) of the rail
| Height of the lubricant (H)
| Support board width (A) of the holder
| Use lubricant
| Main use
|
X-1
| 40-70
| 11
| 100
| Small size
| sutakkakuren, overrunning vehicle
|
X-2
| 70-90
| 11
| 120
| Small size
| General crane (run, overrunning) vehicles
|
X-3
| 90-135
| 18
| 150
| Large size
| General crane (run, overrunning) vehicles
|
X-4
| 135-160
| 18
| 180
| Large size
| General crane run vehicles
|
X-5
| ※
| 11
| ※
| Large size
| Suspension-type whist cranes
|
X-6
| ※
| 18
| ※
| Large size
| Suspension-type whist cranes
|

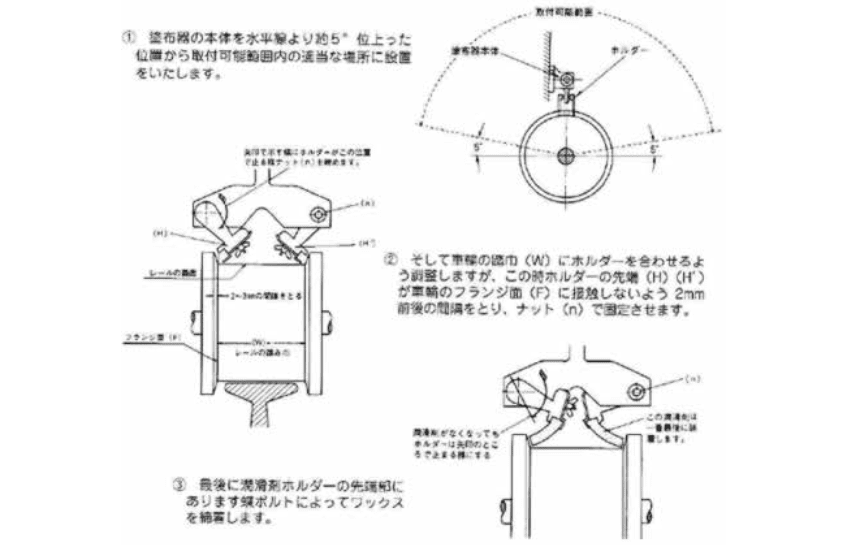

The direction for uses
I clean the surface of every rail sweeper rail
・A slip by kosekibutsu and a phenomenon to skew are reduced.
・Road surfaces of the rail are always cleaned.
Features of the rail sweeper
●It can be easily attached to a club or garters part.
●It is clear at a glance and knows a cleaning state.
●A device is brief, and trouble does not occur.
●It becomes the ground brush if I connect the lead for the ground to a stainless steel brush.
●I wipe water and the oil content on the rail and can take it by putting on polyurethane rubber or felt in substitution for a stainless steel brush.

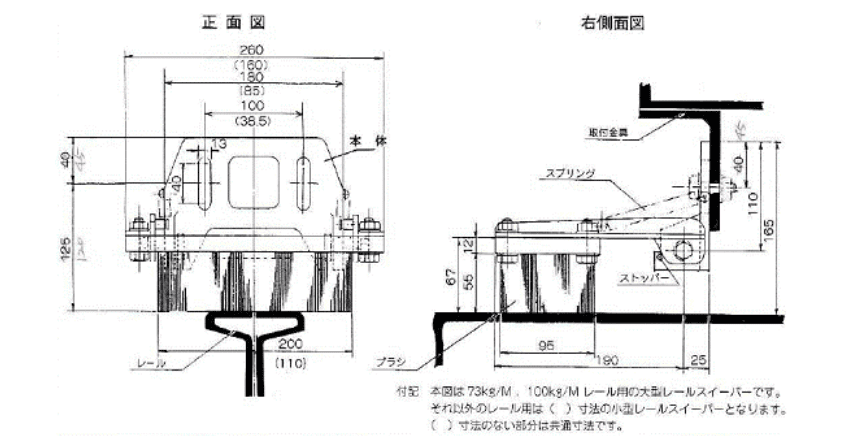

Attachment means
