Pillar techno black CMGC
Pillar No.1200G-H is a gasket of the structure that laminated the both sides of the metal plate which gave concentric wave pattern processing with a special pillar foil sheet.
Pillar No.1200G-H assumes a wave pattern the structure that laminated a special pillar foil sheet on the both sides of the processed metal plate. The metal plate uses stainless steel (316 L of equivalency materials), and corrosion restraint is heat-resistant, and the pillar foil sheet materials adopt the special materials which they considered in purity 98% or more again.
Features
1) I am superior in seal characteristics at the low clamping by forming a concentric seal loop.
2) Quantity of compression in the clamping load is big and is superior in flattery characteristics for the precision on the apparatus side.
3) By materials constitution, I am superior in heat-resistant security and long-term seal characteristics.

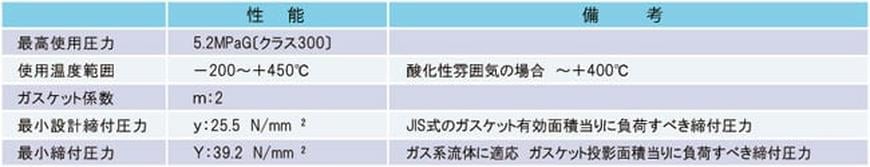

Performance
Gas seal properties
At the high temperature use
I have expensive seal characteristics.
Compression reconstruction characteristic
Of the asbestos joint sheet gasket
I can secure quantity of about 6 times compression.
I can secure quantity of about 6 times compression.
